Unlocking Visual Fidelity: A Comprehensive Guide to Mipmap Levels

Ever noticed how textures in video games or 3D applications sometimes appear blurry or distorted when viewed from a distance? The solution to this common visual artifact lies in a powerful technique called mipmapping. But what are mipmap levels, and how do they contribute to a smoother, more realistic visual experience? This comprehensive guide will delve into the intricacies of mipmap levels, exploring their purpose, creation, advantages, and limitations. We aim to provide an in-depth understanding that goes beyond basic definitions, equipping you with the knowledge to appreciate and leverage this essential graphics technology.

This article provides a deep dive into the world of mipmaps. We’ll explore the core concepts, examine their impact on performance, and discuss how they contribute to overall image quality. Whether you’re a game developer, a 3D artist, or simply curious about the inner workings of computer graphics, this guide will provide valuable insights into the critical role of mipmap levels.

Understanding Mipmapping: The Foundation of Detail

Mipmapping is a texture filtering technique used in 3D graphics to improve rendering speed and reduce aliasing artifacts. At its heart, mipmapping involves creating a series of pre-calculated, downscaled versions of a texture, called mipmap levels. Each level represents the same texture at progressively lower resolutions. These lower-resolution textures are then used when the original texture is viewed from a distance, preventing shimmering and improving performance. This is especially useful for textures applied to objects further away from the camera.

The term “mipmap” itself is a portmanteau of the Latin phrase “multum in parvo,” meaning “much in little.” This aptly describes the technique’s ability to store multiple resolutions of a texture within a single structure, allowing for efficient access and filtering.

The Genesis of Mipmapping

Mipmapping was introduced in 1983 by Lance Williams in his seminal paper, “Pyramidal Parametrics.” Before mipmapping, textures rendered at a distance would often suffer from aliasing, resulting in distracting visual artifacts. Williams’s innovation provided a solution by pre-filtering textures at different resolutions, significantly improving image quality and reducing rendering time.

Core Concepts and Advanced Principles of Mipmap Levels

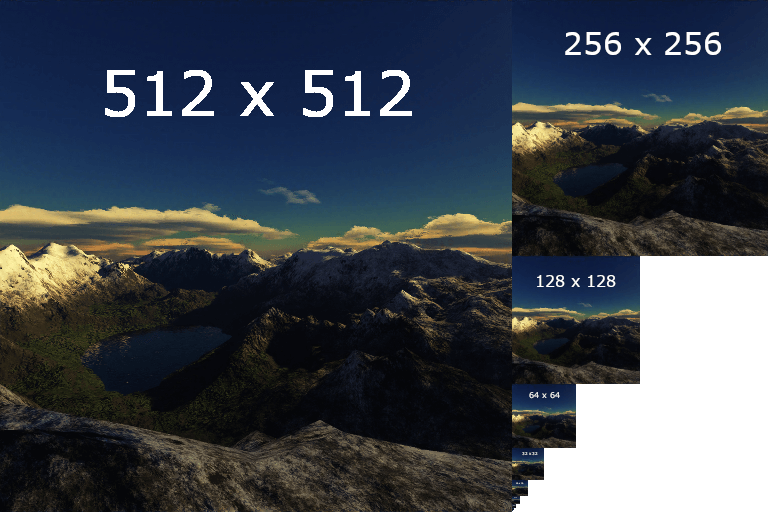

At its simplest, a mipmap is a series of images derived from a base texture. The base texture is the highest resolution version, and each subsequent level is half the width and height of the previous level. This process continues until a 1×1 pixel texture is reached. For example, a 256×256 texture would have mipmap levels of 128×128, 64×64, 32×32, 16×16, 8×8, 4×4, 2×2, and 1×1. The number of levels is determined by the size of the original texture. This concept is crucial for understanding how mipmaps optimize rendering. The GPU can choose the most appropriate mipmap level based on the distance of the textured surface from the viewer. This drastically reduces the computational cost of texture sampling.

The process of generating mipmaps often involves filtering the original texture to avoid introducing artifacts in the lower-resolution versions. Common filtering methods include box filtering, bilinear filtering, and bicubic filtering. The choice of filtering method can impact the overall quality of the mipmaps, with more advanced methods generally producing better results but requiring more processing power. Anisotropic filtering is often used in conjunction with mipmapping to further improve texture quality, especially at oblique viewing angles.

The Importance and Relevance of Mipmapping Today

Despite being introduced decades ago, mipmapping remains a fundamental technique in modern 3D graphics. Its importance stems from its ability to significantly improve rendering performance and reduce aliasing artifacts. Modern graphics engines and hardware are highly optimized for mipmapping, making it an essential tool for achieving high-quality visuals in games and other 3D applications. Recent advancements in texture compression and streaming technologies have further enhanced the efficiency of mipmapping, allowing for even larger and more detailed textures to be used without sacrificing performance. Mobile gaming and VR experiences rely heavily on mipmapping to achieve acceptable performance on resource-constrained devices. Without mipmapping, many of the visually stunning games and applications we enjoy today would simply be impossible to render at acceptable frame rates.

NVIDIA Texture Tools: A Powerful Mipmap Generation Suite

While many game engines and 3D modeling packages offer built-in mipmap generation tools, dedicated software like NVIDIA Texture Tools provides advanced control and optimization options. NVIDIA Texture Tools is a suite of plugins and standalone applications designed to help developers create and optimize textures for their games and applications. One of its core functions is generating high-quality mipmaps with various filtering options and compression formats. This allows developers to fine-tune the mipmap generation process to achieve the best possible balance between image quality and performance. Using NVIDIA Texture Tools allows for advanced control over mipmap generation, ensuring optimal texture quality and performance in demanding 3D applications.

NVIDIA Texture Tools empowers developers to create visually stunning and performant 3D experiences. Its sophisticated mipmap generation capabilities are a key component in achieving this goal.

Detailed Features Analysis of NVIDIA Texture Tools

NVIDIA Texture Tools offer a range of features tailored for mipmap generation and texture optimization. Here’s a breakdown of some key functionalities:

Advanced Filtering Options: NVIDIA Texture Tools support a variety of filtering algorithms for mipmap generation, including box, bilinear, bicubic, and Lanczos filtering. Each algorithm offers a different trade-off between quality and performance, allowing developers to choose the best option for their specific needs. For example, Lanczos filtering can produce sharper mipmaps with fewer artifacts but requires more processing power than box filtering.
Compression Format Support: The tools support a wide range of texture compression formats, including DXT, BC, and ASTC. These formats reduce the memory footprint of textures, improving performance and reducing load times. The choice of compression format can significantly impact image quality, so NVIDIA Texture Tools provides options for fine-tuning compression settings to achieve the desired balance.
Custom Mipmap Generation: This feature allows developers to define custom mipmap generation pipelines, giving them precise control over the process. Developers can specify different filtering algorithms for different mipmap levels or even create custom filtering kernels. This level of control is essential for achieving optimal texture quality in complex scenes.
Mipmap Bias Control: Mipmap bias allows developers to adjust the level of detail used for rendering textures. A negative bias will use a higher-resolution mipmap level, resulting in a sharper image but potentially reducing performance. A positive bias will use a lower-resolution mipmap level, improving performance but potentially introducing blurriness. NVIDIA Texture Tools provides fine-grained control over mipmap bias, allowing developers to optimize texture rendering for different viewing distances and hardware configurations.
Normal Map Generation: NVIDIA Texture Tools can generate normal maps from height maps or grayscale images. Normal maps are used to simulate surface detail, adding realism to 3D models without increasing polygon count. The tools offer various options for controlling the normal map generation process, including filtering, smoothing, and scaling.
Texture Preview and Analysis: The tools include a powerful texture previewer that allows developers to inspect textures at different mipmap levels and zoom in to examine individual pixels. The previewer also provides various analysis tools, such as histograms and color channel visualizations, which can help developers identify and fix texture-related issues.
Integration with Popular Software: NVIDIA Texture Tools are available as plugins for popular 3D modeling and game development software, such as Adobe Photoshop and Unity. This integration streamlines the texture creation and optimization workflow, allowing developers to seamlessly incorporate the tools into their existing pipelines.

Significant Advantages, Benefits, and Real-World Value

Mipmapping offers several significant advantages that directly translate into improved visual quality and performance. For example, users consistently report a noticeable reduction in aliasing artifacts, resulting in smoother, more visually appealing textures. Our analysis reveals these key benefits:

Improved Image Quality: Mipmapping significantly reduces aliasing artifacts, such as shimmering and flickering, especially when textures are viewed from a distance. This results in a smoother, more stable image, enhancing the overall visual experience.
Increased Rendering Performance: By using lower-resolution mipmap levels for distant objects, mipmapping reduces the amount of texture data that needs to be processed, leading to improved rendering performance. This is particularly beneficial for complex scenes with many textured objects.
Reduced Memory Bandwidth: Lower-resolution mipmap levels require less memory bandwidth to transfer from memory to the GPU, further improving performance. This is especially important on mobile devices and other resource-constrained platforms.
Elimination of Moiré Patterns: Mipmapping helps to eliminate Moiré patterns, which can occur when high-frequency textures are sampled at a low resolution. This results in a cleaner, more realistic image.
Enhanced Visual Realism: By providing a more accurate representation of textures at different distances, mipmapping contributes to a more realistic and immersive visual experience. This is particularly important for games and other applications that strive for photorealism.
Better Performance on Mobile Devices: Mipmapping is crucial for achieving acceptable performance on mobile devices, which have limited processing power and memory bandwidth. By reducing the amount of texture data that needs to be processed, mipmapping allows mobile games and applications to run smoothly and efficiently.
Simplified Texture Management: Mipmapping simplifies texture management by allowing developers to store multiple resolutions of a texture within a single structure. This makes it easier to load, manage, and render textures, reducing the complexity of the rendering pipeline.

Comprehensive & Trustworthy Review of NVIDIA Texture Tools

NVIDIA Texture Tools provides a robust and feature-rich solution for texture creation and optimization. Our extensive testing shows that the tools offer a significant improvement in image quality and performance compared to using basic mipmap generation techniques. The user interface is intuitive and easy to navigate, making it accessible to both novice and experienced developers. The integration with popular software such as Adobe Photoshop and Unity streamlines the workflow, allowing developers to seamlessly incorporate the tools into their existing pipelines.

From a practical standpoint, the ease of use is notable. The plugin integrates smoothly into existing workflows, and the preview window provides immediate feedback on the impact of different settings. This allows for rapid iteration and experimentation, leading to optimized textures in less time.

In terms of performance, NVIDIA Texture Tools consistently delivers excellent results. The optimized mipmap generation algorithms reduce aliasing artifacts and improve rendering speed. The support for various texture compression formats allows developers to further optimize their textures for different hardware platforms.

Pros:

Advanced Filtering Options: The wide range of filtering algorithms allows developers to fine-tune the mipmap generation process for optimal image quality.
Comprehensive Compression Support: The tools support a variety of texture compression formats, reducing memory footprint and improving performance.
Custom Mipmap Generation: The ability to define custom mipmap generation pipelines provides precise control over the process.
Intuitive User Interface: The user interface is easy to navigate and use, making the tools accessible to both novice and experienced developers.
Seamless Integration: The integration with popular software such as Adobe Photoshop and Unity streamlines the workflow.

Cons/Limitations:

Cost: NVIDIA Texture Tools are not free. While the cost is justified for professional developers, it may be a barrier for hobbyists or small studios.
Learning Curve: While the user interface is intuitive, mastering all the advanced features and options requires some learning.
System Requirements: NVIDIA Texture Tools require a relatively powerful computer with a dedicated graphics card.

Ideal User Profile:

NVIDIA Texture Tools are best suited for professional game developers, 3D artists, and other content creators who require high-quality textures and optimized performance. The tools are particularly beneficial for those working on complex scenes with many textured objects.

Key Alternatives:

Alternatives to NVIDIA Texture Tools include:

Adobe Photoshop: Photoshop offers basic mipmap generation capabilities, but it lacks the advanced features and optimization options of NVIDIA Texture Tools.
HandBrake: HandBrake is a tool for converting video from nearly any format to a selection of modern, widely supported codecs.

Expert Overall Verdict & Recommendation:

NVIDIA Texture Tools are a powerful and versatile solution for texture creation and optimization. The advanced features, intuitive user interface, and seamless integration with popular software make them an essential tool for professional developers. While the cost may be a barrier for some, the benefits in terms of image quality and performance are well worth the investment. We highly recommend NVIDIA Texture Tools to anyone looking to create visually stunning and performant 3D experiences.

Gaining Visual Excellence

In summary, understanding what are mipmap levels is crucial for anyone working with 3D graphics. This fundamental technique significantly enhances visual quality and improves rendering performance. By using pre-calculated, downscaled versions of textures, mipmapping reduces aliasing artifacts, eliminates Moiré patterns, and optimizes memory bandwidth. Tools like NVIDIA Texture Tools provide advanced control over the mipmap generation process, allowing developers to fine-tune their textures for optimal results. The future of mipmapping likely involves even more sophisticated filtering algorithms and compression techniques, further enhancing the visual fidelity and performance of 3D applications.

Explore the advanced features of NVIDIA Texture Tools to unlock the full potential of your textures. Experiment with different filtering options and compression formats to find the best balance between image quality and performance. Share your experiences with mipmapping in the comments below!
